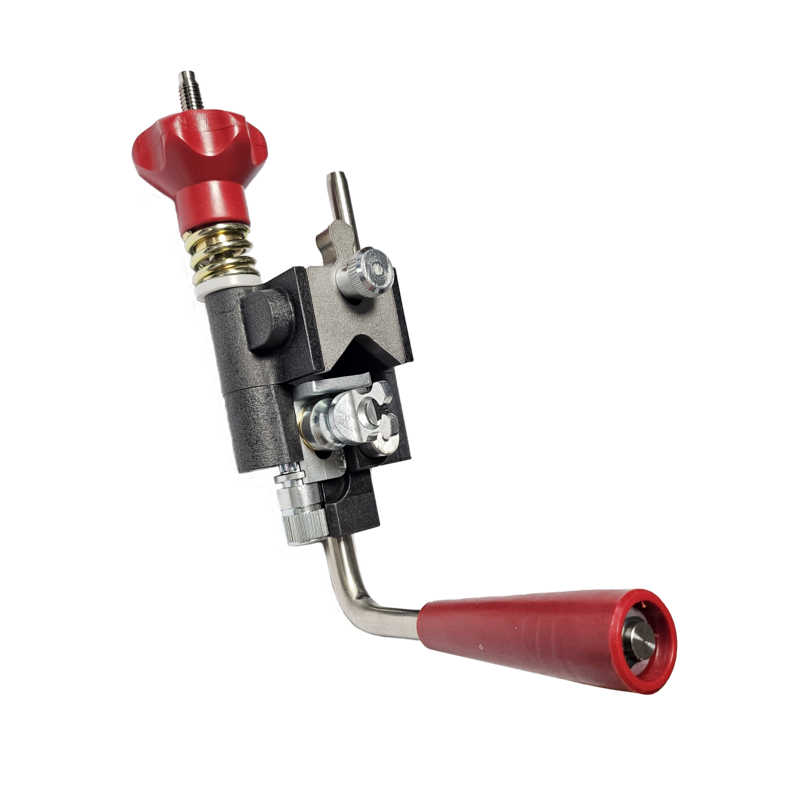

BSC/25-40

/ Use
The BSC/25-40 tool allows to quit the non peelable semi-conductor of cables with a chamfer and a very clean surface.
This tool requires the use of silicon.
Advantages
Penta BulletpointSmooth finish
Penta BulletpointRobust design
Penta BulletpointCutting depth control
Penta BulletpointChanfrein sur l’arrêt du semiconducteur
/ Technical specifications
Penta BulletpointSpecific tools : Cable tools
Penta BulletpointCable tools : Cable tools
Penta BulletpointAreas of activity : Cable & Connections, Electrical distribution, Industry, Substation
Penta BulletpointFor network cables : HTA
Penta BulletpointPackaging : Carton box
Penta BulletpointLenght (mm) : 155
Penta BulletpointWidth (mm) : 82
Penta BulletpointHeight (mm) : 65
Penta BulletpointMax diameter (mm) : 44
Penta BulletpointMini diameter (mm) : 14
Penta BulletpointCut deepness (mm) : 1.5
Penta BulletpointChamfer angle (°) : 14.5
Penta BulletpointRemining length of semi conductor (MIN) (mm) : 25
