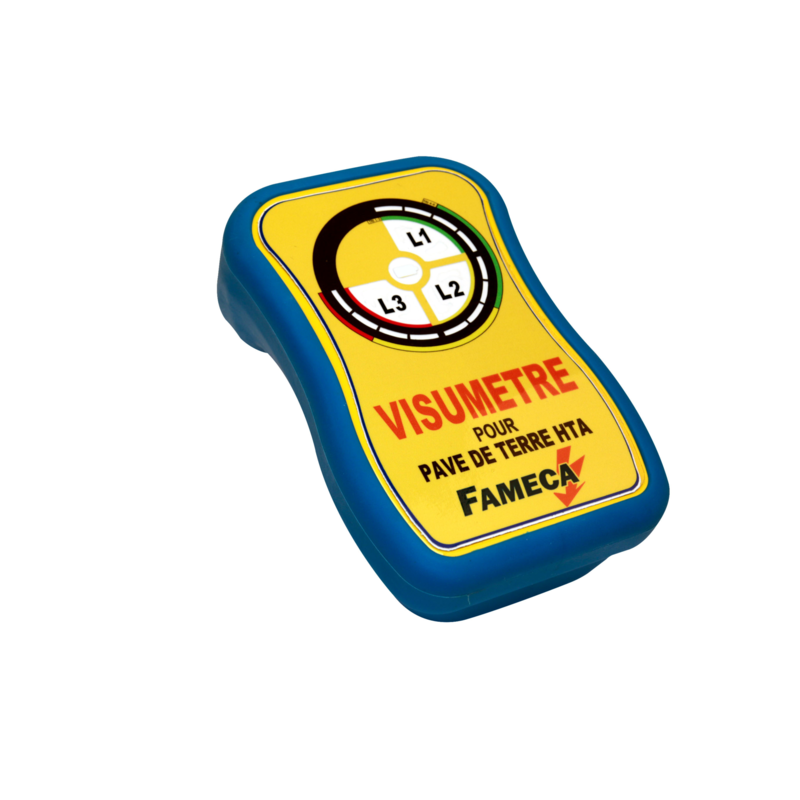

VISUHTA
/ Use (old)
The « Visumeter » is a complementary device that will read phase L1, L2 L3 when the resistor box is connected on to the earthing arrester.
/ Technical specifications (old)
– Resistance mesure range: 0 to 200Ω (consistant with TP2300)
– Phase ID by HiVi LED, GREEN, YELLOW, RED
– Sensitivity : 250uA
– Vibration proof
– Protection fuse 5×20 1.6A
– Supply 2 batteries 1.5V AA
– Net Weight : 350 g
– Weight with accessories : 850 g
– Dimensions : 150 x 94 x 52 mm
– Carrying case dimensions : 175 x 140 x 55 mm
Advantages (old)
• IP65 protection
• IP2X on connection
• L1, L2 and L3 indications by big LEDs sectors
• Two scales displayed for using different numbers of earthing arresters
• Complies with most existing earhing arresters
